kafka # Zookeeper Setup

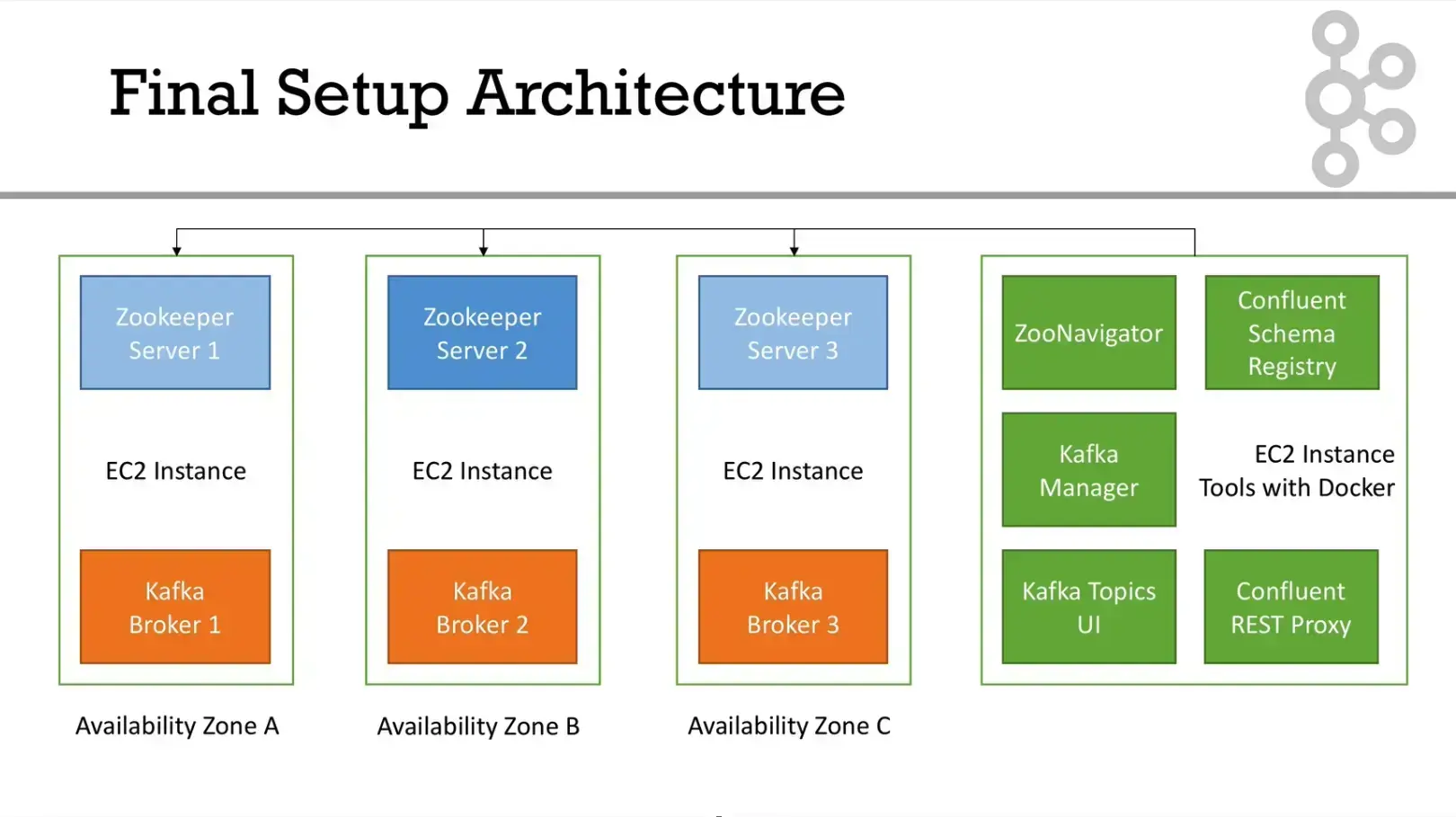

Cloud Provider and Target Architecture

Zookeeper and Kafka must know their hostname and/or IP

What is Zookeeper?

• Zookeeper provides multiple features for distributed applications
  • Distributed configuration management
  • Self election / consensus building
  • Coordination and locks
  • Key value store
• Zookeeper is used in many distributed systems Hadoop eg
• It's very stable

Zookeeper can have basically a directory like system for organizing nodes
- It's internal data structure is a tree
- Each node is called a zNode
- Each zNode has a path
- zNodes can be persistent or ephemeral
- Ephemeral goes away if your app disconnects
- Persistent does not
- zNodes can store data
- Each zNode can be WATCHed for changes

Zookeeper Role in Kafka Cluster

• Broker registration with heartbeats mechanism to keep the list current
• Maintaining a list of topics alongside
  • Their configurations (partitions, replication factor, additional configurations)
  • The list of ISRs for partitions
• Performing leader elections in case some brokers go down
• Storing the Kafka cluster id
• Storing ACLs if security is enabled
  • Topics consumer groups users
• Quotas configuration if enabled

Zookeeper Quorum Sizing

• Zookeeper needs to have a strict majority of servers up to form a strict majority when votes happen
• Therefore zookeeper quorums have 2N+1 servers
• Typically 1 for dev, 3 for production, 5 is very large production (Netflix)

Zookeeper Configuration

• dataDir=/data/zookeeper Directory where data is stored
• clientPort=2181 the port at which the clients connect
• maxClientCnxns=0 Per IP limit on the number of connections
• tickTime=2000 Milliseconds used to do heartbeats and the minimum session timeout will be twice the tickTime
• initLimit=10 the number of ticks that the initial synchronization phase can take
• syncLimit=5 The number of ticks that can pass between sending a request and getting an acknowledgement
• server.1=zookeeper-1:2888:3888 zoo server hostnames

Hands On Zookeeper AWS Setup

• Security Group, allow ports on:
  • 22 (SSH)
  • 2181
  • 2888
  • 3888
  • 2181

For Zookeeper

Single Zookeeper Machine Setup

You want to:

• Disable RAM Swap
  • echo 'vm.swappiness=1 | sudo tee --append /etc/sysctl.conf
• Add hosts mapping from hostname to public ips to /etc/hosts
  • echo "172.31.9.1 kafka1 (etc) | sudo tee --append /etc/hosts

Zookeeper Quorum Setup

• It's important that all instances of zookeeper have the exact same configurations

Zookeeper Four Letter Words

• conf configuration
• cons connections to the server
• dump list the outstanding sessions (only works on leader)
• envi details about the environment (java version)
• ruok is a health check
• srvr full details of the server
• stat lisat brief details for the server and connected clients
• wchs lists brief information on watches for the server
• wchc Lists detailed information on watches for the server by session

Factors Impacting Zookeeper Performance

• Latency, low as possible
• Fask disk is good
• No RAM Swap
• Separate disk for snapshots and logs
• High performance network (put your zookeeper servers close to each other, at least same region)
• Isolate zookeeper instances from other processes (3 zookeeper quorum + 3 kafka brokers = 6 servers)
